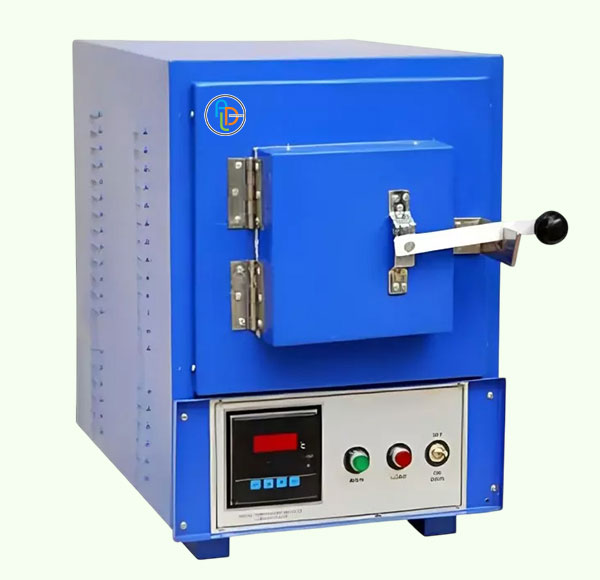

painted insulation with high temperature ceramic fiber wool. Heating elements made of Kanthal wire in coil. from wrapped on the muffle, embedded in high grade refractory cement and backed by HIGH DENSITY CERAMIC FIBRE BLANKET, which avoid loss of heat. The temperature is controlled by digital temperature indicator cum controller. For the models of Maximum temperature is 1000°C, the working temperature is 900°C and for higher temperature models, the maximum temperature is 1200°C and the working temperature is 1100°C.
| Muffle Size (W x H x D) | Working 900°C | Working 1000°C |
|---|---|---|
| (A) 100 x 100 x 225 mm | 28,300/- | 40,600/- |
| (B) 125 x 125 x 250 mm | 31,900/- | 49,300/- |
| (C) 150 x 200 x 300 mm | 34,800/- | 53,650/- |
| (D) 200 x 200 x 475 mm | 47,850/- | 82,650/- |
| (E) 175 x 175 x 475 mm | 55,100/- | 92,000/- |
