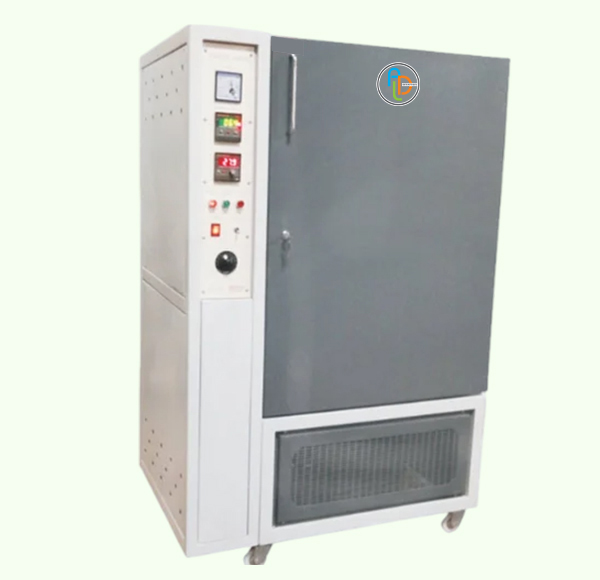

is powder coated. Insulation between inner and outer wall is done with 75mm thick glass wool to prevent any
heat loss. Inner chamber is provided with 3 nos. perforated Stainless Steel Shelves with ribs to adjust the shelves
at desirable height Provided with double door, inner made of thick transparent full view glass and outer door is
double walled metallic properly insulated with glass wool and also provided with best quality handle, gasket etc.
Whole unit is mounted on castor wheels.
Temperature range is from ambient to 60°C and is controlled by Digital temperature Indicator Cum
Controller with PT-100 sensor. This controled is provided with time delay relay to control the
accuracy in maintaining the temperature. Temp. is maintained with an accuracy of +/ 1°C.
Heating is done with ISI mark strip type heaters placed around the inner chamber.
Air is circulating by 1 no. ISI mark Silicon winded motors which are connected to balanced blowers.
Humidity will be maintained up to 95% with an accuracy of +/- 3% and humidity is generated by imported mist
Generator and is controller with the help of imported Humidistat and is indicated by Round Hygrometer. Humidity
is generated through a water reservoir placed in the Icwer/side portion of the chamber. Provided with On/Off switch,
Indicators, Digital Controllers etc.
Size (W x H x D) Inside chamber with S.Steel
| Chamber Size | S. Steel Price |
|---|---|
| 455 mm x 455 mm x 710 mm | 73,900/- |
| 605 mm x 605 mm x 605 mm | 1,16,000/- |
| 605 mm x 605 mm x 910 mm | 1,07,300/- |
Same as above chamber with temperature range 10°C to 60°C ± 2°C with cooling & heating system & Humidity 55% to 95% ± 5%
Size (W x D x H) Inside chamber with S.Steel
| Chamber Size | S. Steel Price |
|---|---|
| 455 mm x 455 mm x 710 mm | 1,01,500/- |
| 605 mm x 605 mm x 605 mm | 1,16,000/- |
| 605 mm x 605 mm x 910 mm | 1,37,750/- |
