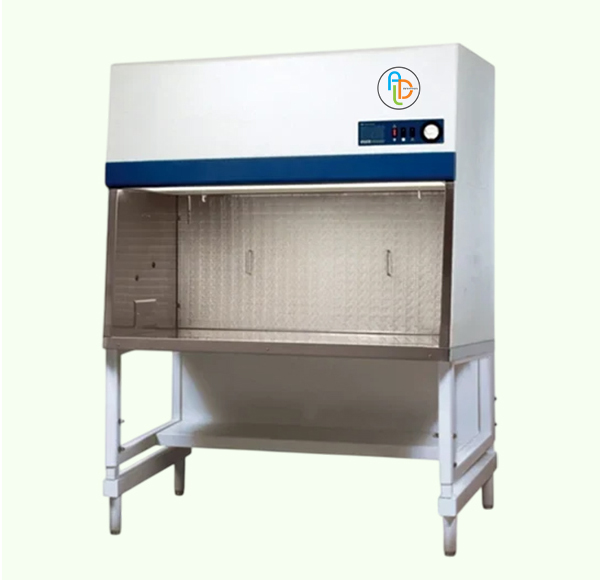

Designed so as to meet the requirement of US Federal Standard 209 B (BS 5295) providing particle free air to
meet class 100 (Class conditions. The cabinets are fabricated out of thick board duly sunmica clad interior surface
are epoxy painted for its longer life. The work table is made of thick board which is S. Steel clad at top. Side panels
are made out of thick transparent plexi glass duly framed. The unit is fitted with pre-filter and HEPA Filter. Air is
drawn through pre-filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filters
having efficiency rating as high as 99.99% with cold DOP, and 99.97% wiyh hot DOP, thus retaining all air-borne
particles of size 0.3 micron and larger. Using a dynamic machine, the blower and motor assembly is statically and
dynamically balanced ISI Marked Motor of 1/5 H.P. capacity operates with minimum noise level.
The working area is illuminated by flourescent lighting fitted to the unit,. Height of the working table provides comfortable ‘SIT DOWN’ working position for the operator. To work on 220/230 volts A.C. supply. Supplied complete with S. Steel table top, HEPA filters and flourscent illumination, UV light & Gas Burner.
| Model | LH-22 | LH-32 | LH-42 | LH-62 |
|---|---|---|---|---|
| Working size | 2’ x 2’ x 2’ | 3’ x 2’ x 2’ | 4’ x 2’ x 2’ | 6’ x 2’ x 2’ |
| Size of HEPA filter | 2’ x 2’ x 6’ | 3’ x 2’ x 6’ | 4’ x 2’ x 6’ | 3’ x 2’ x 6’ |
| No. of HEPA filter | 1 | 1 | 1 | 1 |
| Illumination | 1 x 20 W | 1 x 20 W | 2 x 40 W | 2 x 40 W |
| Prices | 69,600/- | 87,000/- | 98,600/- | 1,24,700/- |
| Deluxe Model | 2’ x 2’ x 2’ | 3’ x 2’ x 2’ | 4’ x 2’ x 2’ | 6’ x 2’ x 2’ |
| Complete in S.S. Body | 1,24,700/- | 1,42,100/- | 1,82,100/- | 2,61,000/- |
Detail same as AGL-126 but with laminar air flowing vertically from top towards the work table.
| Model | LV-23 | LV-32 | LV-42 | LV-62 |
|---|---|---|---|---|
| Working size | 2’ x 2’ x 2’ | 3’ x 2’ x 2’ | 4’ x 2’ x 2’ | 6’ x 2’ x 2’ |
| Size of HEPA filter | 2’ x 2’ x 6’ | 3’ x 2’ x 6’ | 4’ x 2’ x 6’ | 3’ x 2’ x 6’ |
| No. of HEPA filter | 1 | 1 | 1 | 1 |
| Illumination | 1 x 20 W | 1 x 20 W | 2 x 40 W | 2 x 40 W |
| Prices | ||||
| Deluxe Model | 78,300/- | 98,600/- | 1,07,300/- | 1,39,200/- |
| Complete in S.S. Body | 1,30,500/- | 1,45,000/- | 1,85,600/- | 2,75,500/- |
