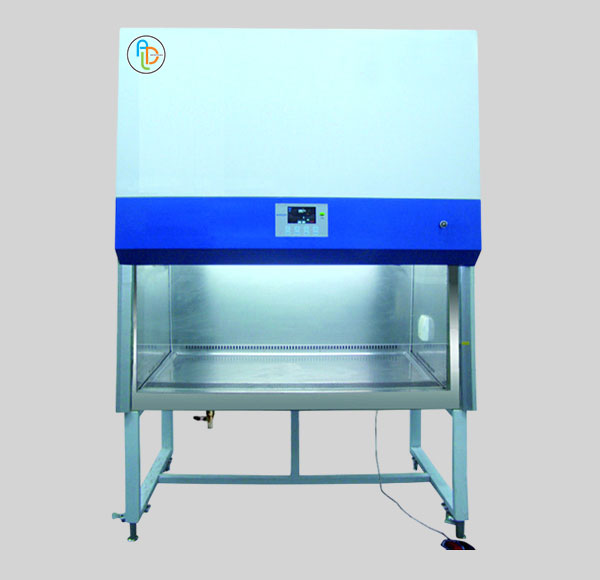

The cabinet are fabricated out of thick board duly sunmica clad, interior surface are epoxy painted for its longer life. The
work table is made of Heavy gauge S.S. sheet and is fitted with U.V. Germicidal light, static pressure Manometer, Exhaust
System (suitable for 6 feet duck) and Virus Burn Out Unit. Side panels are made out of thick transparent plexi glass duly
framed. The unit is fitted with pre-filter and HEPA Filter. Air is drawn through pre-filter and is made to pass through highly
effective HEPA (High Efficiency Particular Air) filter shaving efficiency retaining all air-boaren particles of size 0.3 micron
and larger. Using a dynamic balancing machine, the blower and motor assembly is statically and dynamically balanced.
Motor of 1/4 H.P. capacity operates with minimum noise level. The working area is illuminated by flourescent lighting fitted
to the unit.
The hight of the working table provides a comfortable “SIT DOWN” working position for the operator. In
addition to the above future of a standade Vertical Laminar Flow Bench, the Bio-safe cabinets have arrangements for recirculating
a part of the air thus creating highest label of clean air.
The unit is also convertible to the conventional vertical laminar flow bench with downward air flow by lifting the
sliding iron door upwards. Air is sucked through the pre-filter and the excess air is thrown out from the top through
a HEPA filter of size 1’ x 1’ x 6”. Supplied with glove ports and gauntlets, HEPA filter, pre-filter, U.V. light and
flourscent light.
| Working size | 3’ x 2’ x 2’ | 4’ x 2’ x 2’ | 6’ x 2’ x 2’ | 6’ x 2’ x 2’ |
|---|---|---|---|---|
| Size of HEPA filter | 3’ x 1.5’ x 6’ | 4’ x 2’ x 6’ | 3’ x 1.5’ x 6’ | 3’ x 2’ x 6’ |
| No. of HEPA filter | 1 | 1 | 2 | 1 |
| Illumination | 1 x 20 W | 2 x 40 W | 2 x 40 W | 2 x 40 W |
| Prices | 1,21,800/- | 1,42,100/- | 1,42,100/- | 1,59,500/- |
| Complete in S.S. Body | 1,59,500/- | 1,88,500/- | 1,88,500/- | 2,17,500/- |
Optional Accessories
| Working size | 2’ x 2’ x 2’ | 3’ x 2’ x 2’ | 4’ x 2’ x 2’ | 6’ x 2’ x 2’ |
|---|---|---|---|---|
| Wooden body | 84,000/- | 1,04,400/- | 1,18,900/- | 1,42,100/- |
| Inner chamber FRP/S.S. (Perfect) | 23,000/- | 29,000/- | 36,000/- | 43,500/- |
| Lining on Working Walls extra | ||||
| Complete in S.S. Body | 1,13,100/- | 1,37,750/- | 1,59,500/- | 2,03,000/- |
Optional Accessories
